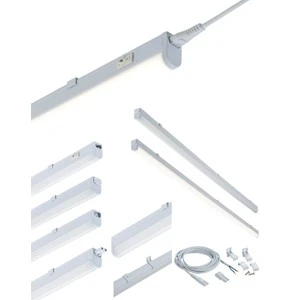

K/Bridge UCLED7CW Stp/Lgt LED 7W 230V

UCLED7CW



Unit Weight0.179 kg
Warranty3 Years
UKCA ApprovedY
CE ApprovedY
Energy Efficiency ClassE
Luminous Efficiency110.9 Lm/W
Voltage230 V
Colour Rendering Index83.1
Light Output570 Lm
Colour Temperature4000 K
Operating Temperature Range-10~40 Degrees C
Average Lifespan30000 Hours
Beam Angle130 Degrees

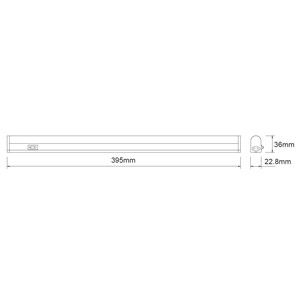

Depth36 mm
Width22.8 mm
Length395~2000 mm
Cover ColourOpal
Housing ColourWhite
Housing MaterialPolycarbonate
Self-ContainedN
EmergencyN
Ingress ProtectionIP20
Wattage7 W
Number of Lamps40
Lamp(s) Included?Y
LED Driver Included?Y
Ballast/Starter IncludedN
Cover TypeDiffuser
Cover IncludedY
PIR IncludedN
Photocell IncludedN
Microwave Sensor IncludedN
Vandal ResistantN
Corrosion ResistantN
DimmableN
Fire RatedN
Mounting TypeSurface
Mounting PositionCabinet
Lamp TypeLED Fixed
TypeStriplight
ProductLuminaire
Code
£8.74  Each
inc. VAT £10.49
